Description
Adapting 4L80E late version transmissions to Jeep New Process transfer cases, 23 spline late output shaft version. (32 spline also available.)
Adapting the GM 4L80-E Transmission to the Jeep Models 207, 231, 242, 249 & 241OR Transfer Cases
Novak's 4L80E transmission to the Jeep New Process (or New Venture) transfer cases conversion makes for one of the strongest geartrains possible for both on-road and off-road, and has become an increasingly popular transmission to transfer case combination.
Product & Features
The Adapter
The Novak 4L80 to Jeep transfer cases adapter is compact at only 3.0" long for a combined transmission and adapter length of 29-1/4" (equivalent to a ~22-5/8" manual transmission). The adapter itself is machined of a 6061 billet aluminum alloy, featuring thick flanges and a heavy cross-section.
Transfer Case Clocking & Rotation Options
Our adapter is drilled for multiple clocking locations from near-factory (20 degrees down) to near-flat (3 degrees down). However, pan clearances and front axle width may inhibit the flatter options.
Rear Mount Provision
This transfer case adapter's design features a modular mounting and support system and mounting base, ready to accept our industry standard urethane isolator mount, available for purchase below.
Contents

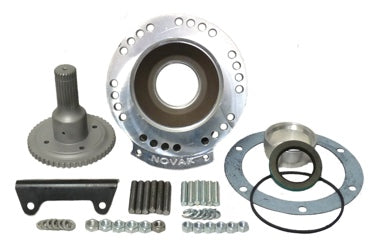

Billet adapter housing, transfer case input or transmission output depending on kit selection, seal spacer, seal, transfer case to adapter gasket, transmission to adapter sealing ring, fastening hardware, steel mounting base, and instructions.
